On Windows 10 this is done by:
- Run gpedit. msc.
- Find “User Rights Assignment” under “Computer Configuration” > “Windows Settings” > “Security Settings” > “Local Policies”
- Locate “Lock pages in memory” and double click it.
- Click “Add User or Group” and add the correct user.
- Log out or restart to make the changes take effect.
- How do I enable HugePages?
- What is large pages in Windows?
- What are huge pages mining?
- What is the difference between HugePages and transparent huge pages?
- How do I increase virtual memory in Windows 10?
- What is large page memory?
- Why Gpedit MSC is not working?
- What is lock pages in memory?
- How do I access local security policy?
- What is the use of huge pages in Linux?
- How do I activate huge pages on XMRig?
- How do I know if XMRig is working?
How do I enable HugePages?
Execute ‘sysctl -p’ command to enable the hugepages parameter. Note : It’s recommended to restart the system after configuring hugepages as the chances of having free contiguous memory (for hugepages allocation) is much greater when a system is started.
What is large pages in Windows?
Large-page support enables server applications to establish large-page memory regions, which is particularly useful on 64-bit Windows. Each large-page translation uses a single translation buffer inside the CPU.
What are huge pages mining?
Computer memory is divided into page blocks, and in most operating systems pages larger than 4 KB are called HugePages. HugePages, also known as LargePages (on Windows) and SuperPages (on macOS), are an essential element for mining algorithms on the main processor of a computer.
What is the difference between HugePages and transparent huge pages?
Transparent Hugepages are similar to standard HugePages. However, while standard HugePages allocate memory at startup, Transparent Hugepages memory uses the khugepaged thread in the kernel to allocate memory dynamically during runtime, using swappable HugePages.
How do I increase virtual memory in Windows 10?
Go to the Start Menu and click on Settings. Type performance. Choose Adjust the appearance and performance of Windows. In the new window, go to the Advanced tab and under the Virtual memory section, click on Change.
What is large page memory?
Large memory pages are pages of memory which are significantly larger than 4 kb, usually 2 Mb.
Why Gpedit MSC is not working?
If you find the Group Policy Editor (gpedit. msc) missing in Windows 10, you should first try to enable or open gpedit: press Windows + R to open Run dialog -> type gpedit. … Upgrade to Windows 10 Pro or Enterprise. Copy & paste GroupPolicy, GroupPolicyUsers, and gpedit.
What is lock pages in memory?
Lock Pages in Memory is a Windows policy that determines which accounts can use a process to keep data in physical memory, preventing the system from paging the data to virtual memory on disk. Locking pages in memory may keep the server responsive when paging memory to disk occurs.
How do I access local security policy?
To open Local Security Policy, on the Start screen, type secpol. msc, and then press ENTER. Under Security Settings of the console tree, do one of the following: Click Account Policies to edit the Password Policy or Account Lockout Policy.
What is the use of huge pages in Linux?
HugePages is a feature integrated into the Linux kernel 2.6. Enabling HugePages makes it possible for the operating system to support memory pages greater than the default (usually 4 KB).
How do I activate huge pages on XMRig?
1GB huge pages Linux only
By default this feature disabled, to enable use option «1gb-pages»: true, in «randomx» object. If use XMRig with root privileges, additional system configuration not required. As an alternative you can go to miner source directory and run sudo ./scripts/enable_1gb_pages.sh script source .
How do I know if XMRig is working?
Windows users can double click on xmrig.exe. Users of other operating systems should cd into the directory that contains XMRig and then type ./xmrig and press return. If you see green messages saying that shares have been accepted, congratulations, everything is working!
The benefit of using large pages
CPUs have a virtual memory space that is decoupled from the actual physical memory, in blocks called pages. Usually these are 4KB (4096 bytes) in size, and so there are a lot of pages used in rendering large images.
Because the IFS process leads to very incoherent memory access patterns, the CPU cache for page mappings (the TLB) can thrash pretty hard. By using large pages, which are typically 2MB in size, these cache misses are much less frequent, leading to substantially improved performance. 10-20% overall rendering speed improvement on an i7 CPU is common, and the speedup increases at higher resolution.
Here’s an example from a 4K (3840×2160) AA 2 animation frame, showing a 12% speedup:
Without large pages.
With large pages.
How to enable large page support on Windows
Programs can be given permissions to lock pages in memory in the Local Security Policy settings; Windows Home or starter versions don’t include an interface for this, however there are guides for this as well.
This section assumes you’re using Windows Professional, Enterprise, Ultimate or Server:
- From the Start menu, open Local Security Policy (under Administrative Tools).
- Under Local Policies\User Rights Assignment, double click the Lock Pages in Memory setting.
- Click Add User or Group and type your Windows user name.
- Either log off and then log back in or restart your computer — unfortunately it won’t work without this step.
Editing your shortcut to run as Administrator
Programs furthermore need to be run with Admin privileges in order to use large page allocations. To avoid having to right-click and select Run as Administrator every time, you can edit your shortcut to do this automatically, in the «Compatibility» section:
Troubleshooting
You can verify that large page support is enabled by opening the About dialog, which will say «Large page support enabled» if it could successfully get the permissions for large page allocations.
The 12.2 documentation says “Large page usage locks the entire SGA into physical memory“. However, this is not always true.
Consider the case of mixed mode, (ORA_SID_LPENABLE=2), with fragmented memory. Some of the SGA has to be allocated with normal pages. The alert log will show:
Fri Jul 14 13:01:56 2017 Large page enabled. Mode is : 2 Fri Jul 14 13:01:56 2017 Large page size : 2097152 Large page request size : 16777216 Fri Jul 14 13:01:56 2017 Large page Mixed-mode : Max time for each Large page allocation can be : 30000 msecs Fri Jul 14 13:01:56 2017 Allocated Large Pages memory of size : 14680064 Fri Jul 14 13:01:56 2017 Allocated Large Pages memory of size : 1073741824 Fri Jul 14 13:01:56 2017 Allocated Large Pages memory of size : 536870912 Fri Jul 14 13:01:56 2017 Allocated Large Pages memory of size : 134217728 Fri Jul 14 13:01:57 2017 Allocated Large Pages memory of size : 50331648 Fri Jul 14 13:01:57 2017 Allocated Large Pages memory of size : 33554432 Fri Jul 14 13:01:57 2017 Large page Mixed-Mode : Failed to allocate memory in Large Pages. Allocation will be in normal pages
The normal sized pages of the SGA are not locked into memory, (and can’t be with LOCK_SGA), which could impact performance.
From x$ksmge and x$kmgsct
MIN(BASEADDR) MAX(BASEADDR) GRANULES MB GRANFLAGS COMPONENT GRANSTATE ---------------- ---------------- ---------- ---------- ---------- -------------------------------- ----------- 000007FF00000000 000007FF61000000 90 1440 4 DEFAULT buffer cache ALLOC 000007FF02000000 000007FF07000000 6 96 4 Shared IO Pool ALLOC 000007FF5C000000 000007FF5C000000 1 16 4 java pool ALLOC 000007FF5D000000 000007FF63000000 3 48 4 large pool ALLOC 000007FF64000000 000007FF7E000000 27 432 4 shared pool ALLOC
We can see large page usage, but the entire SGA is not locked in RAM. (Part of the shared pool is not locked).
Unfortunately, we can’t use the LOCK_SGA parameter to fix this because the instance will fail to start with that parameter set when large pages are used.
The DBA’s Options
- Use normal pages and set LOCK_SGA=true
Incurs the overhead of using 4KB pages on large memory systems. - Use ORA_SID_LPENABLE=1 and set LOCK_SGA=false
Benefits from large pages, but the instance may fail to start if the server hasn’t been rebooted. Not ideal for a large production server with multiple databases on it. - Use ORA_SID_LPENABLE=2 and set LOCK_SGA=false
Benefits from large pages, but unless the instance is restarted soon after a reboot each time, part of the SGA will often comprise normal pages, which are not locked, and so could be paged out.
While I appreciate the value of consistent performance, I still favour option 3 for large memory systems. Even if reboots aren’t possible before each instance is started, the instance will not fail to start and most of the SGA should be in large locked pages. To mitigate the risk of some of the SGA being paged out, I’d reserve a lot of RAM to handle spikes in demand from other processes, such as Windows Update.
Making the Oracle World a Better Place
Medium Term
I have filed a bug with Oracle Support to correct the documentation.
Update – the 19c documentation includes this note:
In regular mode, large page usage locks the entire SGA into physical memory. Physical memory is not released during a shrink operation. In mixed mode, only the large pages from the SGA are locked in physical memory, not released during a shrink operation and regular pages remain pageable.
Long Term
Surely the Oracle code could be altered to behave as if LOCK_SGA=true when mixed mode wasn’t able to allocate large pages for the entire SGA. Having the entire SGA locked in RAM, with as many large pages as possible, would be the ideal situation, so I have logged an enhancement request:
Bug 26670992 – BOTH NORMAL AND LARGE PAGES USED BY SGA SHOULD BE LOCKED WHEN IN MIXED MODE
By Franck Pachot
.
In a previous post about enabling large page on Windows Server, I explained that it’s possible to use large pages with Automatic Memory Management (AMM, where sizing if SGA and PGA is automatic with MEMORY_TARGET setting) but possible does not mean that it is recommended. We feel that it’s not a good idea, but are there reasons for it or it’s just our Linux background that brings this opinion?

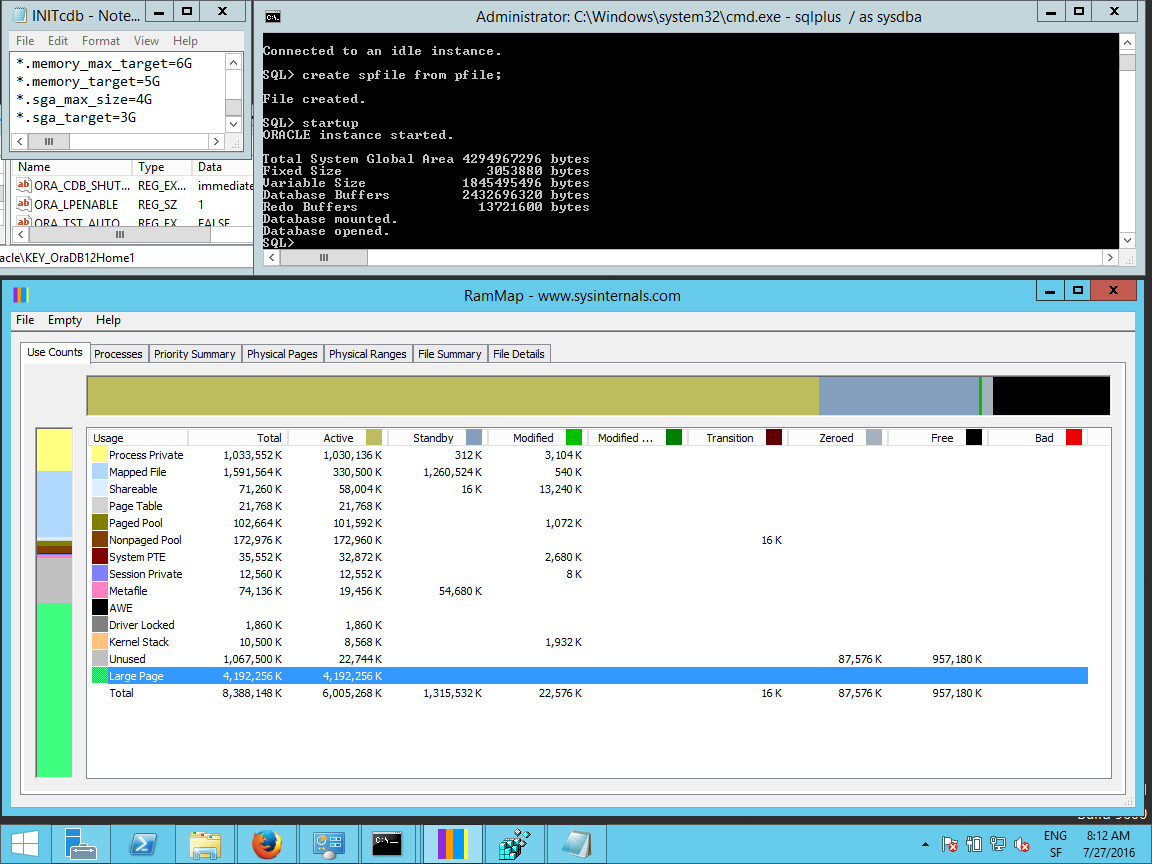

SGA_MAX_SIZE=4G, MEMORY_MAX_SIZE=6G
What is the size of allocated large pages? If it is set, SGA_MAX_SIZE is the size allocated as large pages when ORA_LPENABLE=1, even if you’ve set some MEMORY_MAX_SIZE:
I take screenshots with all information: the init.ora settings and the regedit entry on top-left. Latest sqlplus commands on top right (here screenshot is just after the startup). And memory given by Sysinternals RamMap.
So, when SGA_MAX_SIZE is set, it’s the maximum size of SGA that can be allocated, and this is what is allocated at startup from physical memory until the end of the instance. You can reduce the SGA_TARGET dynamically, but I don’t see any reason for that as the memory allocated in large page will not be released, nor swapped, nor usable for PGA.

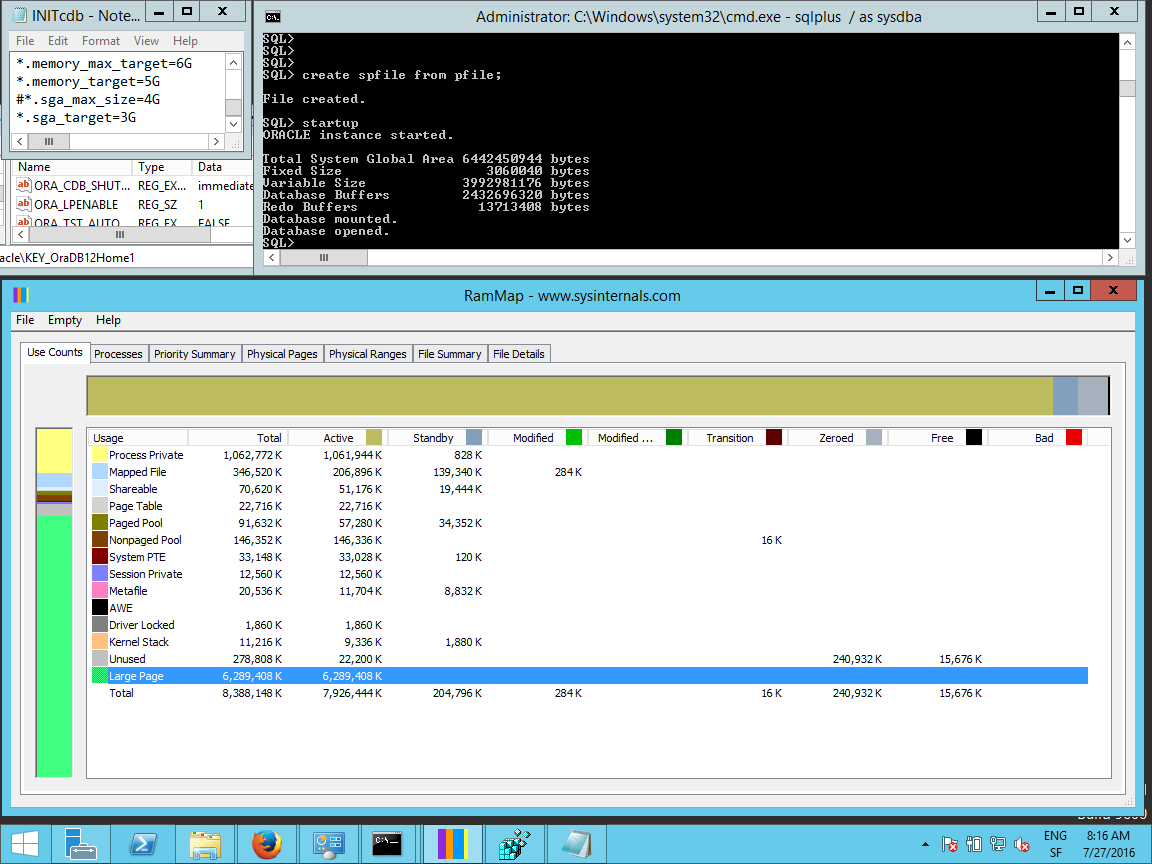

SGA_MAX_SIZE unset, MEMORY_MAX_SIZE=6G
If we don’t set SGA_MAX_SIZE, then the SGA can grow up to MEMORY_MAX_SIZE and this is what is allocated at startup when ORA_LPENABLE=1:

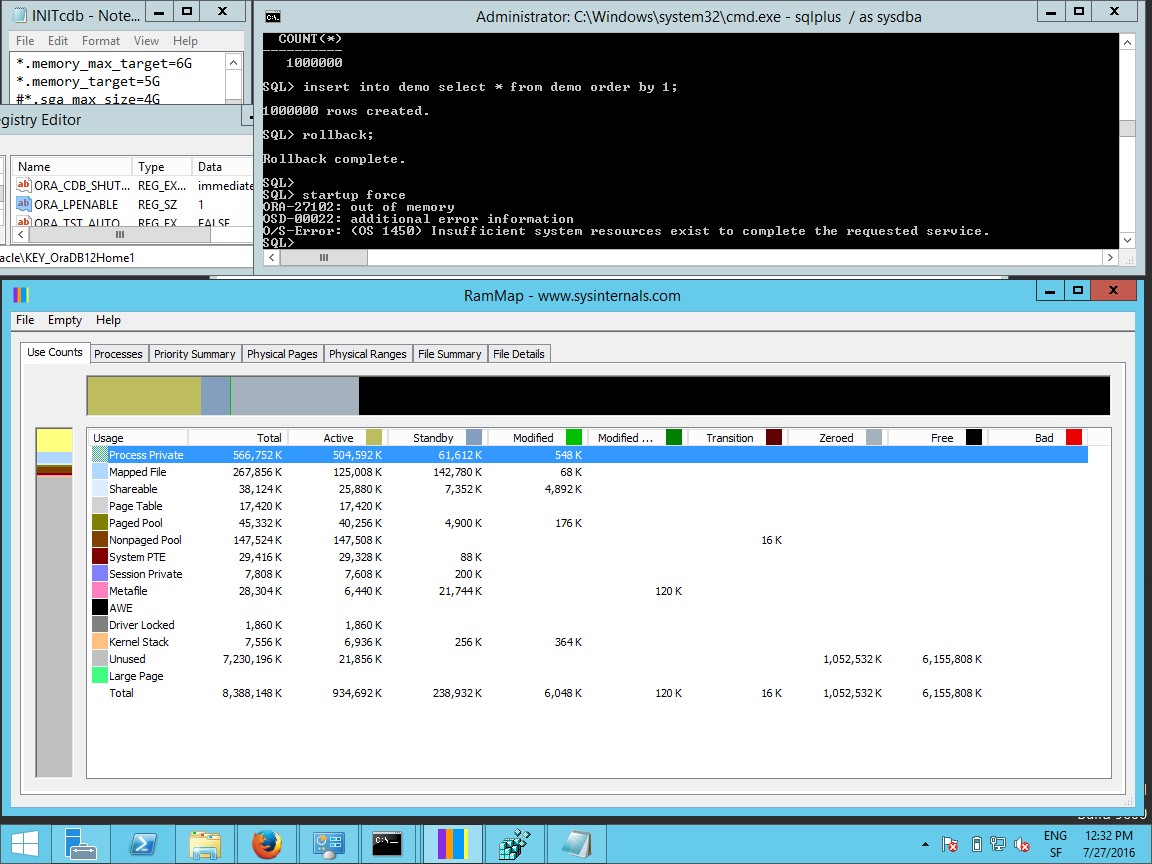

Physical memory must be free
When ORA_LPENABLE=1 and not enough memory is available if physical memory, you get an error (ORA-27102 OS 1450) at startup:
What I did here was running 10 instances of SQLDeveloper to use 2GB on my 8GB VM.

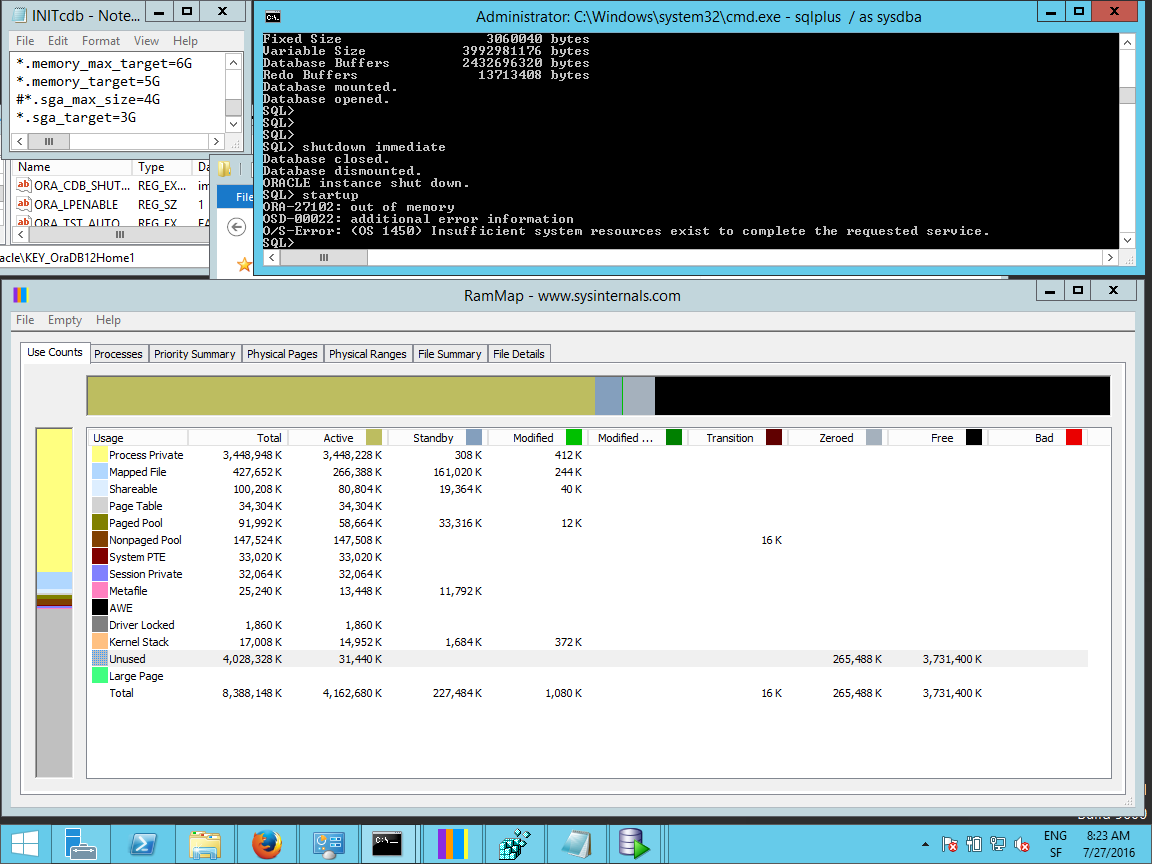

Fragmentation
Not only we need the SGA to be allocated from physical memory, but it needs to be contiguous. Here is a screenshot I took some times later with those sqldev closed but after I had lot of activity on the VM:
As you see here, there is enough RAM (7GB) but not contiguous.
The recommandation when using large pages on Windows is to start all instances immediately after server restart, and if you have to restart an instance you may have to reboot the server. Note that the major advantage of large pages is on virtualized environments, and then you should not have more that one instance in a server. If you are convinced that with Windows it’s always good to restart the server, here you have a reason: fragmentation breaks large pages.

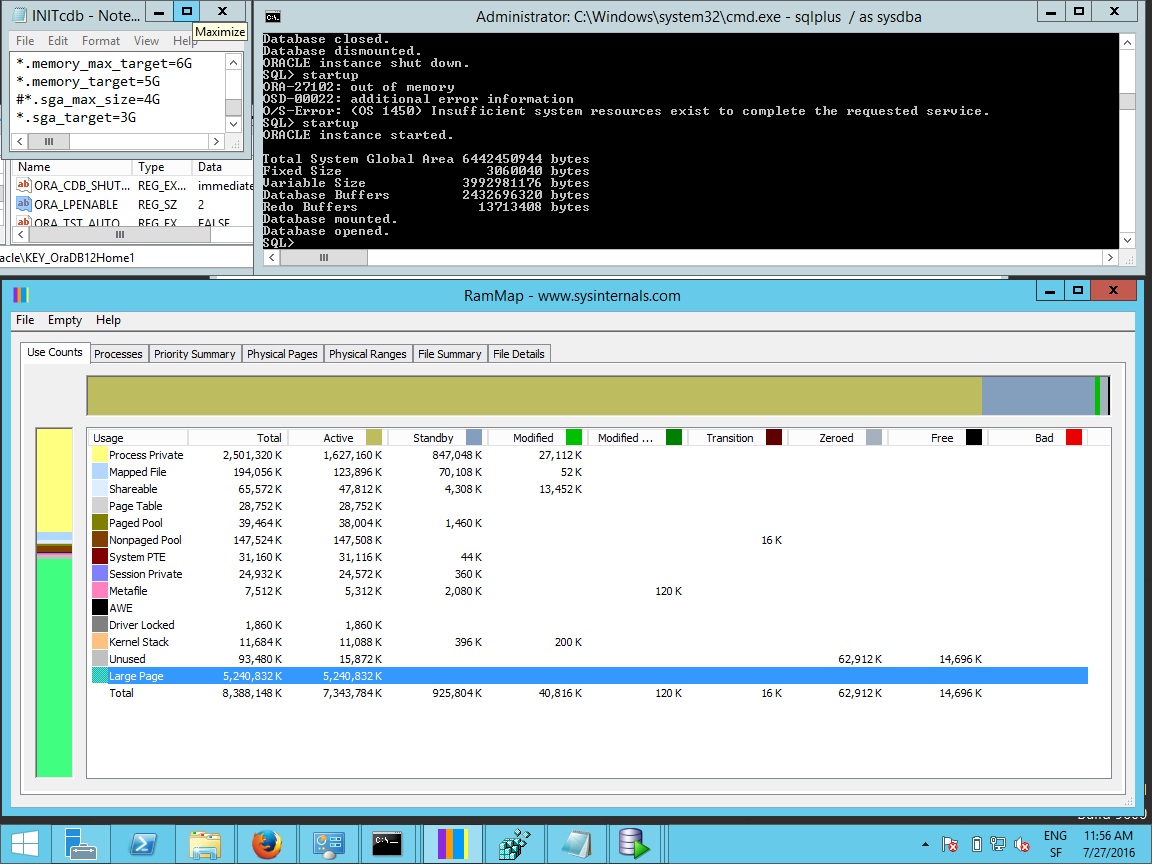

Mixed-mode
Let’s go back to the state where I had 10 SQLDeveloper opened. I change ORA_LPENABLE to 2 instead of 1 to be able to start the instance even is there is not enough contiguous RAM for the SGA (here for the MEMORY_TARGET as no SGA_MAX_SIZE is defined).
Now, I’m able to start the instance (but it took several minutes here as physical memory is exhausted):
Instance is started, but not all 6GB have been allocated as large pages. In this case where SGA_TARGET is 3GB, I presume that all SGA uses large pages unless we increase SGA_TARGET higher than the 5GB allocated, but this is only my guess.

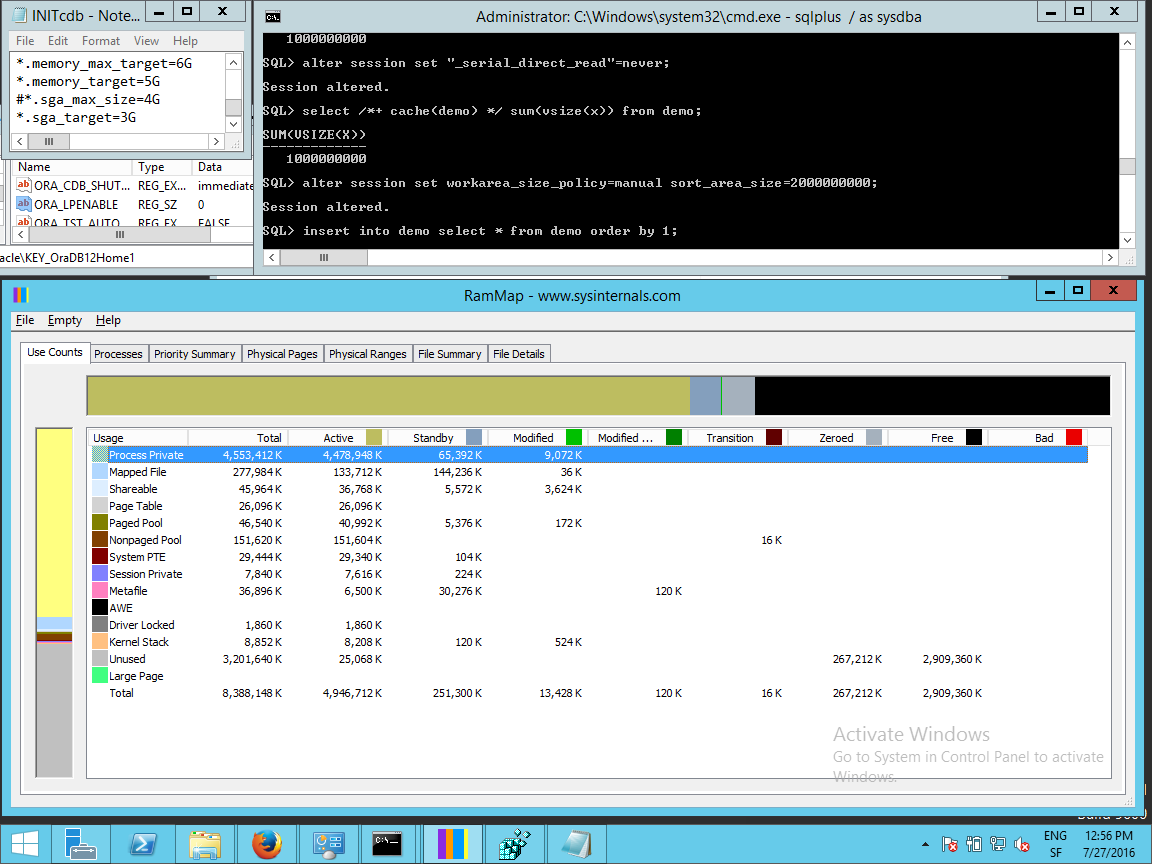

MEMORY_MAX_SIZE and ORA_LPENABLE=0
So, now that we know how it works, let’s see the danger to run AMM with large pages.
Here is a database in AMM where MEMORY_TARGET=5GB after running some query that needs several GB of buffer cache (thanks to CACHE hint and “_serial_direct_read”=never) and several GB of PGA (thanks to manual workarea size policy). First, without large pages:
The RAM allocation is all private process memory (on Windows, Oracle processes are actually threads from one process only). And AMM achieves its goal: target is MEMORY_TARGET=5GB and this is what we have allocated for the instance.

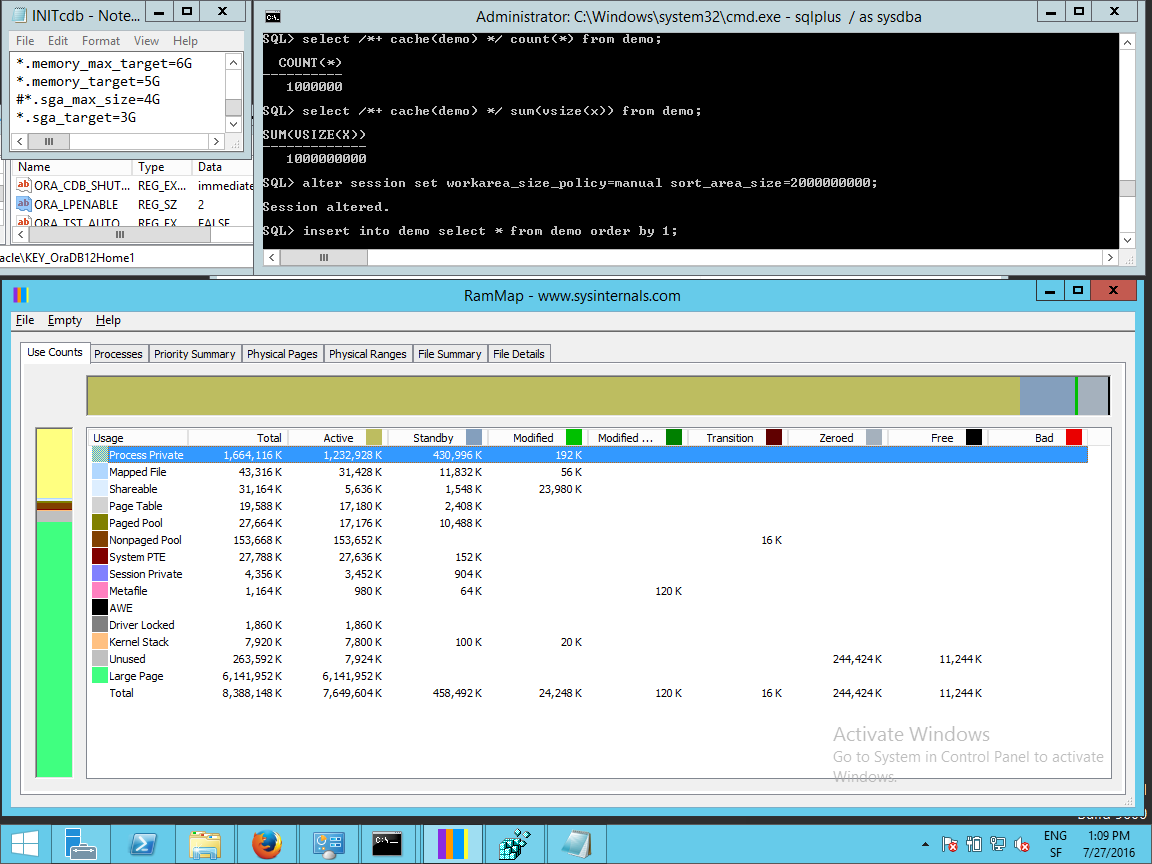

MEMORY_MAX_SIZE and ORA_LPENABLE=2
Now doing the same with large page:
MEMORY_MAX_SIZE is supposed to be used for PGA+SGA and a large use of PGA should reduce SGA. But it cannot be done here because SGA is large page and PGA cannot be allocated from large pages. This means that AMM with large page do not achieve its goal. MEMORY_MAX_SIZE acts like having set SGA_MAX_SIZE to that value and very small PGA_AGGREGATE_TARGET. In this example (artificial example as I used manual workarea size policy, but same happens with auto and several sessions) physical memory is exhausted.
From that, I think we have a reason to recommend ASSM (Automatic Shared Memory Management) with large pages, as with Linux. In Oracle, because of the threaded architecture, it’s not a requirement but in my opinion it’s still a good idea to differentiate those memory areas that are so different:
- SGA: one area allocated at startup, preferentially from large pages
- PGA: variable size areas allocated and de-allocated by sessions
If you have more than few GB on your server, you should size SGA and PGA independently and benefit from large pages for SGA. Do not set MEMORY_MAX_SIZE then. Don’t set MEMORY_TARGET either as it acts as MEMORY_MAX_SIZE if this one is not set.
Added 18th December 2016
In the above, I explained that using AMM is not a good idea with large pages because the allocated MEMORY_TARGET was not used for PGA. It can be worse. AMM may try to release some large pages to allocate small pages for PGA. And re-get large page later. This can bring huge fragmentation and contention. This has been confirmed by Oracle developers.
So the conclusion is clear: don’t use AMM with large pages even on Windows where it is allowed. Recommandation is to use large pages and set SGA_TARGET and PGA_AGGREGATE_TARGET without setting MEMORY_TARGET.
Post Views: 2,102
Windows 10 is a powerful operating system that offers a wide range of features and capabilities, allowing users to multitask and perform demanding tasks with ease. However, for those seeking an extra performance boost, enabling huge pages can be a game-changer. Huge pages, also known as large memory pages, allocate larger blocks of memory for specific applications, resulting in improved system performance. In this article, we will explore how to enable huge pages on Windows 10, making the process a breeze for users looking to maximize their computer’s potential.
Traditionally, Windows has used the default 4KB memory pages for various applications and processes. However, this size can become a bottleneck for software that requires access to large amounts of memory. By enabling huge pages, Windows can allocate memory in much larger chunks, reducing the overhead associated with managing numerous smaller pages. This optimization can greatly benefit memory-intensive applications such as databases, virtual machines, and scientific simulations, resulting in faster processing times and increased overall performance. If you’re eager to unlock your Windows 10 system’s full potential, the following guide will walk you through the simple steps to enable huge pages and unleash a new level of performance.
Understanding Huge Pages
A. Explanation of page sizes
Huge pages, also known as large pages, are a memory management feature in operating systems that allow for larger memory allocations. Unlike standard pages, which are typically 4 KB in size, huge pages can be several megabytes or even gigabytes large. These larger page sizes offer several advantages in terms of memory management and system performance.
B. Benefits of using huge pages over standard pages
There are several benefits to using huge pages over standard pages. Firstly, the larger page size reduces the amount of memory overhead incurred by the operating system. This can lead to improved overall system performance, as less time and resources are spent managing page tables.
Secondly, huge pages can enhance application performance, particularly for memory-intensive workloads. The larger page size allows for more efficient memory access, reducing the number of page table lookups required and decreasing the likelihood of cache misses. This can result in faster data retrieval and improved application responsiveness.
Furthermore, huge pages can also help to reduce memory fragmentation. By allocating larger contiguous blocks of memory, the system is less prone to memory fragmentation issues that can impact performance.
C. Impact of huge pages on performance
Enabling huge pages on Windows 10 can have a significant impact on system performance, especially for applications that require large amounts of memory. By utilizing larger page sizes, the operating system can more effectively manage memory resources, resulting in improved overall system responsiveness and reduced latency.
In addition, the decreased memory overhead and reduced page table lookups associated with huge pages can lead to faster memory access times, benefiting applications with high memory access requirements such as databases or virtual machines.
Overall, understanding the concept of huge pages and their impact on performance is crucial for maximizing the benefits of this feature on Windows 10. By leveraging the advantages offered by huge pages, users can optimize their system’s memory management and improve the performance of resource-intensive applications.
IChecking System Compatibility
A. Verifying if your processor supports huge pages
Before enabling huge pages on your Windows 10 system, it is important to ensure that your processor supports this feature. Not all processors have the capability to utilize huge pages, so it is necessary to check compatibility.
To verify if your processor supports huge pages, you can refer to the specifications provided by the manufacturer. Look for information on the architecture and features of your processor. If it supports the required extensions, such as Intel’s Extended Page Tables (EPT) or AMD’s Rapid Virtualization Indexing (RVI), then it is compatible with huge pages.
B. Checking if your operating system supports huge pages
Another crucial aspect to consider is the compatibility of your operating system with huge pages. While Windows 10 does support the use of huge pages, it is essential to ensure that you are running a compatible version.
To check if your operating system supports huge pages, first, navigate to the System Information window. You can access this by right-clicking on the Start menu, selecting “System,” and then clicking on “System Information.” Look for the “System Type” field, which will indicate whether you are running a 32-bit or 64-bit version of Windows.
Huge pages are only supported on 64-bit versions of Windows. If you are running a 32-bit version, you will need to upgrade to a 64-bit version to enable huge pages.
C. Ensuring you have sufficient RAM for huge pages
Enabling huge pages requires a sufficient amount of RAM to allocate for these larger page sizes. Therefore, it is crucial to check if your system has enough available memory to support this feature.
To determine the amount of RAM in your system, open the System Information window as described earlier. Look for the “Installed Physical Memory (RAM)” field, which will display the total amount of RAM available.
It is recommended to have at least 2 GB of RAM for enabling huge pages. If your system has less than this minimum requirement, consider upgrading your RAM to ensure optimal performance when using huge pages.
By checking your processor compatibility, operating system compatibility, and available RAM, you can determine if your system is capable of supporting huge pages. These compatibility checks are essential before proceeding with the steps to enable huge pages in Windows 10.
IEnabling Huge Pages in Windows 10
A. Accessing the Windows Registry Editor
To enable huge pages on Windows 10, you will need to access the Windows Registry Editor. The Registry Editor is a powerful tool that allows you to make changes to the Windows operating system.
To open the Registry Editor, press the Windows key + R on your keyboard to open the Run dialog box. Then, type “regedit” and click OK. This will open the Registry Editor.
Please note that making changes to the Windows Registry can have a significant impact on your system, so it is important to proceed with caution and follow the instructions carefully.
B. Locating the appropriate registry key for huge pages
Once you have the Registry Editor open, you will need to locate the appropriate registry key for enabling huge pages.
Navigate to the following registry path:
HKEY_LOCAL_MACHINESYSTEMCurrentControlSetControlSession ManagerMemory Management
C. Modifying the registry key to enable huge pages
In the Memory Management folder, locate the registry key named “LargeSystemCache”. Double-click on it to modify its value.
In the Edit DWORD Value window, change the value to “1” and click OK. This will enable the use of large system cache, which is necessary for enabling huge pages.
Next, locate the registry key named “HugePagesEnabled”. Double-click on it to modify its value.
In the Edit DWORD Value window, change the value to “1” and click OK. This will enable huge pages on your Windows 10 system.
Finally, close the Registry Editor and restart your computer for the changes to take effect.
By following these steps, you will be able to enable huge pages on Windows 10 and take advantage of the performance benefits they offer. Remember to exercise caution when making changes to the Windows Registry and always create a backup before proceeding.
Huge pages can significantly improve system performance, especially for resource-intensive applications. So, don’t hesitate to enable huge pages and enjoy a boost in performance on your Windows 10 machine.
Configuring Huge Paging File Size
A. Understanding the role of the paging file in huge pages
In order to optimize the performance of huge pages on Windows 10, it is essential to configure the appropriate paging file size. The paging file, also known as the page file or swap file, is a system file that temporarily stores data when the physical memory (RAM) is full. By default, Windows automatically manages the paging file size, but for optimal performance with huge pages, manual configuration is recommended.
When using huge pages, the size of the paging file directly affects the overall system performance. It is important to allocate enough space in the paging file to support the increased memory requirements of huge pages. Insufficient paging file size may lead to performance issues and potential crashes, as the system may run out of virtual memory.
B. Setting the appropriate paging file size for optimal performance
To configure the paging file size in Windows 10:
1. Open the Control Panel and navigate to the “System” or “System and Security” section.
2. Click on “System” and then select “Advanced system settings” from the left-hand menu.
3. In the System Properties window, go to the “Advanced” tab and click on the “Settings” button in the “Performance” section.
4. In the Performance Options window, go to the “Advanced” tab and click on the “Change” button in the “Virtual memory” section.
5. Uncheck the “Automatically manage paging file size for all drives” option.
6. Select the drive where Windows is installed (usually the C: drive) and choose the “Custom size” option.
7. Enter the initial and maximum size for the paging file. It is recommended to set both values to the same value, which is equal to the total amount of physical memory (RAM) in your system. For example, if you have 16GB of RAM, set the initial and maximum size to 16,384 MB (16GB x 1024).
Conclusion
By properly configuring the paging file size for huge pages, you can ensure optimal performance and prevent potential issues caused by insufficient virtual memory. This allows the system to effectively utilize the benefits of huge pages, such as reduced memory overhead and improved overall performance.
Implementing the appropriate paging file size for huge pages is a crucial step in maximizing the gains offered by this feature on Windows 10. By following the recommended practices and ensuring sufficient virtual memory, users can experience significant performance improvements in resource-intensive applications.
Take advantage of the flexibility and scalability provided by huge pages, and empower your Windows 10 system to handle demanding workloads more efficiently. Configure your paging file size today and unleash the full potential of huge pages for an enhanced computing experience.
Allocating Memory for Huge Pages
A. Determining the amount of memory to allocate for huge pages
Allocating memory for huge pages is an important step in maximizing the performance gains of enabling huge pages on Windows 10. To determine the amount of memory to allocate for huge pages, you need to consider the total amount of available RAM on your system.
First, you need to check the size of your huge pages. As mentioned earlier, huge pages have a larger page size compared to standard pages, which results in reduced translation lookaside buffer (TLB) overhead and improved performance. Depending on your specific requirements and the applications you use, you may want to allocate more memory for huge pages.
To calculate the amount of memory to allocate, divide the total available memory by the size of each huge page. For example, if you have 16GB of RAM and each huge page size is 2MB, you would divide 16,000MB by 2MB to get 8,000 huge pages.
B. Adjusting the huge page size based on memory allocation
After determining the amount of memory to allocate for huge pages, you may need to adjust the huge page size to ensure optimal memory utilization. Windows 10 supports different huge page sizes, including 2MB, 4MB, and 1GB.
If you have a large memory allocation for huge pages, it is generally recommended to use larger page sizes, such as 1GB, as they result in fewer entries in the page table and TLB. On the other hand, if you have a smaller memory allocation, choosing smaller page sizes like 2MB or 4MB can help avoid potential memory wastage.
To adjust the huge page size, you will need to modify the Windows registry key for huge pages, as discussed in Section IBy changing the appropriate registry value, you can select the desired page size for optimal memory allocation.
C. Modifying memory allocation settings in BIOS
In addition to adjusting the huge page size in the Windows registry, you may also need to modify memory allocation settings in the Basic Input/Output System (BIOS) of your system. Some systems have BIOS options that allow you to allocate a specific portion of memory for use as huge pages.
To modify memory allocation settings in the BIOS, restart your system and enter the BIOS settings menu. Look for options related to memory allocation or memory management. Depending on your system manufacturer and BIOS version, the specific options may vary. Enable the option to allocate memory for huge pages and specify the amount of memory to allocate based on your calculations from earlier.
Once you have made the necessary changes in the BIOS, save the settings and exit. Your system will now allocate the specified amount of memory for huge pages, resulting in improved performance for resource-intensive applications.
By properly allocating memory for huge pages and adjusting the page size based on your memory allocation, you can optimize the performance benefits of enabling huge pages on Windows 10. This step is crucial in ensuring that your system utilizes the available resources efficiently and provides the desired performance improvements.
A. Tools to measure performance improvement with huge pages
When enabling huge pages on Windows 10, it is essential to assess the performance gains achieved. There are several tools available that can help measure the impact of huge pages on system performance.
One popular tool is the Windows Performance Monitor, which comes pre-installed with Windows 10. This tool allows users to track various performance metrics, including memory usage, CPU utilization, and disk activity. By monitoring these metrics before and after enabling huge pages, users can determine the improvements in system performance.
Another useful tool is the Performance Monitor (Perfmon) in the Windows Administrative Tools. Perfmon provides more advanced performance monitoring capabilities, allowing users to analyze specific processes and system components in detail. With Perfmon, users can create custom performance counters and track the performance of individual applications utilizing huge pages.
B. Benchmarking applications and comparing results
Benchmarking applications can also be employed to compare the performance of an application with and without huge pages enabled. These applications simulate real-world scenarios and measure the system’s response, providing valuable insights into the benefits of utilizing huge pages.
One popular benchmarking tool is Geekbench, which evaluates the performance of both single-core and multi-core processors. By running the benchmark before and after enabling huge pages, users can observe improvements in both CPU and memory performance.
Another widely used benchmarking tool is PassMark PerformanceTest, which assesses the overall system performance by testing various components such as the CPU, memory, disk, and graphics. By conducting tests with PerformanceTest, users can quantify the impact of enabling huge pages on the overall system performance score.
It is important to note that benchmarking results may vary depending on the specific hardware configuration and the applications being tested. Therefore, it is recommended to perform multiple tests and average the results to obtain a more accurate understanding of the performance improvements achieved with huge pages.
By utilizing these tools and benchmarking applications, users can effectively measure the performance enhancement gained from enabling huge pages on Windows 10. These measurements provide valuable insights and help justify the implementation of huge pages for optimized system performance.
Troubleshooting Common Issues
Addressing memory allocation errors
Enabling huge pages on Windows 10 can greatly improve performance for resource-intensive applications. However, there are some common issues that users might encounter when attempting to enable huge pages. One of these issues is memory allocation errors.
When you enable huge pages, your system allocates a large amount of memory to be used specifically for these pages. However, depending on your system configuration, you may run into memory allocation errors.
To address memory allocation errors, there are a few steps you can take. Firstly, you can check if your system meets the minimum requirements for enabling huge pages. Ensure that you have sufficient RAM available to allocate to the huge pages.
If you have verified that your system has the necessary resources, but you are still encountering memory allocation errors, you can try adjusting the page size for the huge pages. By reducing the page size, you may be able to allocate the necessary memory without encountering errors.
It is also important to note that some applications or processes may be using a significant amount of memory, leaving limited resources for huge pages. In such cases, you can consider closing unnecessary applications or processes to free up more memory for huge pages.
If you have tried these steps and are still experiencing memory allocation errors, it is recommended to seek support from the application or software developers. They may be able to provide additional guidance or updates to address any compatibility issues with huge pages.
Resolving stability issues caused by huge pages
While enabling huge pages can significantly boost performance, it is possible to encounter stability issues due to their usage. Some users may experience system crashes or instability after enabling huge pages.
To resolve stability issues caused by huge pages, there are a few troubleshooting steps you can take. Firstly, ensure that you have followed the correct steps to enable huge pages, including modifying the registry key and allocating memory appropriately.
If stability issues persist, you can try adjusting the paging file size. With huge pages, the paging file plays a crucial role in the overall system performance. By increasing or decreasing the paging file size, you may be able to mitigate stability issues.
Additionally, it can be helpful to update your system drivers and firmware to the latest versions. Outdated drivers or firmware can sometimes cause compatibility issues with huge pages, resulting in stability problems.
Lastly, you can try disabling other system optimizations or overclocking settings that may be conflicting with huge pages. Sometimes, certain settings or optimizations can interfere with the proper functioning of huge pages.
If all else fails, it is recommended to seek assistance from technical support or forums dedicated to Windows 10 and huge pages. Other users may have encountered similar stability issues and can provide valuable insights or solutions.
By troubleshooting and resolving common issues with huge pages, users can ensure a smooth and stable implementation of this performance-boosting feature on Windows 10.
Monitoring Huge Pages Usage
Monitoring the usage of huge pages is essential to ensure optimal performance and troubleshoot any issues that may arise. By regularly checking the status and usage of huge pages, you can identify potential bottlenecks and make necessary adjustments. Additionally, using performance monitoring tools can provide detailed insights into the performance of your system with huge pages enabled.
A. Checking the status and usage of huge pages
Before monitoring the usage of huge pages, it’s important to verify that they are enabled on your Windows 10 system. To check the status of huge pages, use the following command in Command Prompt:
wmic ComputerSystem get HugePageTotal
This command will display the total number of huge pages allocated on your system. Alternatively, you can use other system monitoring utilities that provide information about the status and usage of huge pages.
B. Using performance monitoring tools to track huge page performance
To get detailed insights into the performance of your system with huge pages enabled, you can utilize performance monitoring tools. Windows Performance Monitor is a built-in tool that allows you to track various system performance metrics, including the usage of huge pages.
To access Windows Performance Monitor, follow these steps:
- Press Windows Key + R to open the Run dialog box.
- Type perfmon and press Enter.
In the Performance Monitor window, you can create a new Data Collector Set specifically for monitoring huge pages usage. Configure the data collector set to capture metrics such as the number of huge pages allocated, page faults, and memory usage.
By regularly monitoring the performance metrics related to huge pages, you can identify any performance issues or bottlenecks. This information can help you optimize your system configuration and ensure that you are maximizing the benefits of enabling huge pages on Windows 10.
Best Practices for Utilizing Huge Pages
A. Recommendations for maximizing performance gains
Enabling huge pages on Windows 10 can significantly boost your system’s performance. To ensure you are utilizing huge pages effectively, it is important to follow some best practices:
1. Enable huge pages for relevant applications: Not all applications benefit from huge pages. Resource-intensive applications like databases, virtual machines, and video editing software are most likely to see performance improvements. Before enabling huge pages, identify the applications that would benefit the most and focus on those.
2. Allocate sufficient memory: Allocating the right amount of memory for huge pages is crucial. Insufficient memory allocation can lead to performance degradation. Consider the memory requirements of your applications and allocate enough memory to accommodate both normal and huge pages.
3. Adjust the page size: Huge page sizes can vary depending on the system and application requirements. Experiment with different page sizes to find the optimal one for your specific use case. Keep in mind that larger page sizes can lead to improved performance but may also consume more memory.
4. Regularly monitor performance: After enabling huge pages, it is important to monitor your system’s performance. Keep an eye on resource utilization, CPU usage, and memory usage. This will help you identify any potential issues or bottlenecks and make adjustments accordingly.
5. Keep your system updated: Ensure that your Windows 10 operating system and applications are up to date. Updates often include performance improvements and bug fixes that can further enhance the benefits of using huge pages.
B. Utilizing huge pages for resource-intensive applications
Resource-intensive applications can significantly benefit from huge pages. Some examples of applications that can make use of huge pages include:
1. Database management systems (DBMS): Huge pages can have a significant impact on database performance by reducing memory access latency. If you are running a DBMS like Oracle, MySQL, or PostgreSQL, enabling huge pages can greatly improve query response times and overall system throughput.
2. Virtualization software: Virtual machines rely heavily on memory management. By enabling huge pages, you can enhance the performance of your virtualized environment. This is especially beneficial when running multiple virtual machines simultaneously or performing tasks that require extensive memory resources.
3. Video editing and rendering software: Video editing and rendering applications often require large amounts of memory to process high-resolution footage and complex effects. Enabling huge pages can help these applications perform more efficiently, leading to faster rendering times and smoother editing experiences.
Remember to consult the documentation or support resources of your specific applications to determine if they support and can benefit from huge pages. Implementing huge pages for resource-intensive applications can go a long way in enhancing your overall system performance.
Conclusion
A. Recap of the benefits of enabling huge pages on Windows 10
Enabling huge pages on Windows 10 can provide significant performance improvements for resource-intensive applications. By allocating memory more efficiently and reducing memory access latency, huge pages enable faster processing, smoother multitasking, and improved overall system performance.
B. Encouragement to implement huge pages and improve system performance
If you are running resource-intensive applications on your Windows 10 system, enabling huge pages is an excellent way to unlock their full potential. By following the outlined best practices and utilizing huge pages for relevant applications, you can maximize the performance gains and enhance your overall computing experience.
Take the necessary steps to check system compatibility, enable huge pages in the Windows 10 registry, and allocate the appropriate amount of memory. Monitor performance and make adjustments as needed. By implementing huge pages, you can harness the power of your system and enjoy a smoother and more responsive computing experience. Don’t miss out on the opportunity to improve your system’s performance with this simple yet effective technique.
RecommendedConclusion
A. Recap of the benefits of enabling huge pages on Windows 10
Enabling huge pages on Windows 10 offers several benefits to users. Huge pages use larger page sizes compared to standard pages, resulting in improved system performance. With larger page sizes, there is reduced overhead in memory management, leading to faster data retrieval and improved overall efficiency. Huge pages are particularly beneficial for resource-intensive applications that require large amounts of memory.
By enabling huge pages, users can experience faster application load times, reduced latency, and improved multitasking capabilities. These benefits can greatly enhance the performance of applications such as video editing software, 3D rendering programs, and virtual machines.
B. Encouragement to implement huge pages and improve system performance
If you want to boost the performance of your Windows 10 system, enabling huge pages is a recommended step. With its numerous benefits and ease of implementation, it is a simple yet effective way to optimize your system’s capabilities.
By following the steps outlined in this guide, you can check system compatibility, configure and allocate memory for huge pages, and monitor their usage. Additionally, this article provides troubleshooting tips to address common issues and ensure smooth operation.
Enabling huge pages is a valuable technique that can significantly enhance the performance of your system and improve your overall user experience. The increased efficiency and reduced overhead provided by huge pages can make a noticeable difference, especially when using resource-intensive applications.
Take advantage of the benefits offered by huge pages and unleash the full potential of your Windows 10 system. Boost your productivity, streamline your workflows, and enjoy faster application performance with minimal effort.
In conclusion, enabling huge pages on Windows 10 is a straightforward process that can yield substantial improvements in system performance. By implementing huge pages and following the best practices outlined in this guide, users can optimize their system resources and enhance their overall computing experience.
So, why wait? Start implementing huge pages today and unlock the full potential of your Windows 10 system.
